[ nodar hdk nano ]
HDK Nano
Same stereo vision pipeline.
Built to your baseline and field of view specs.
Optimized for low power and low cost on a Jetson Orin Nano.

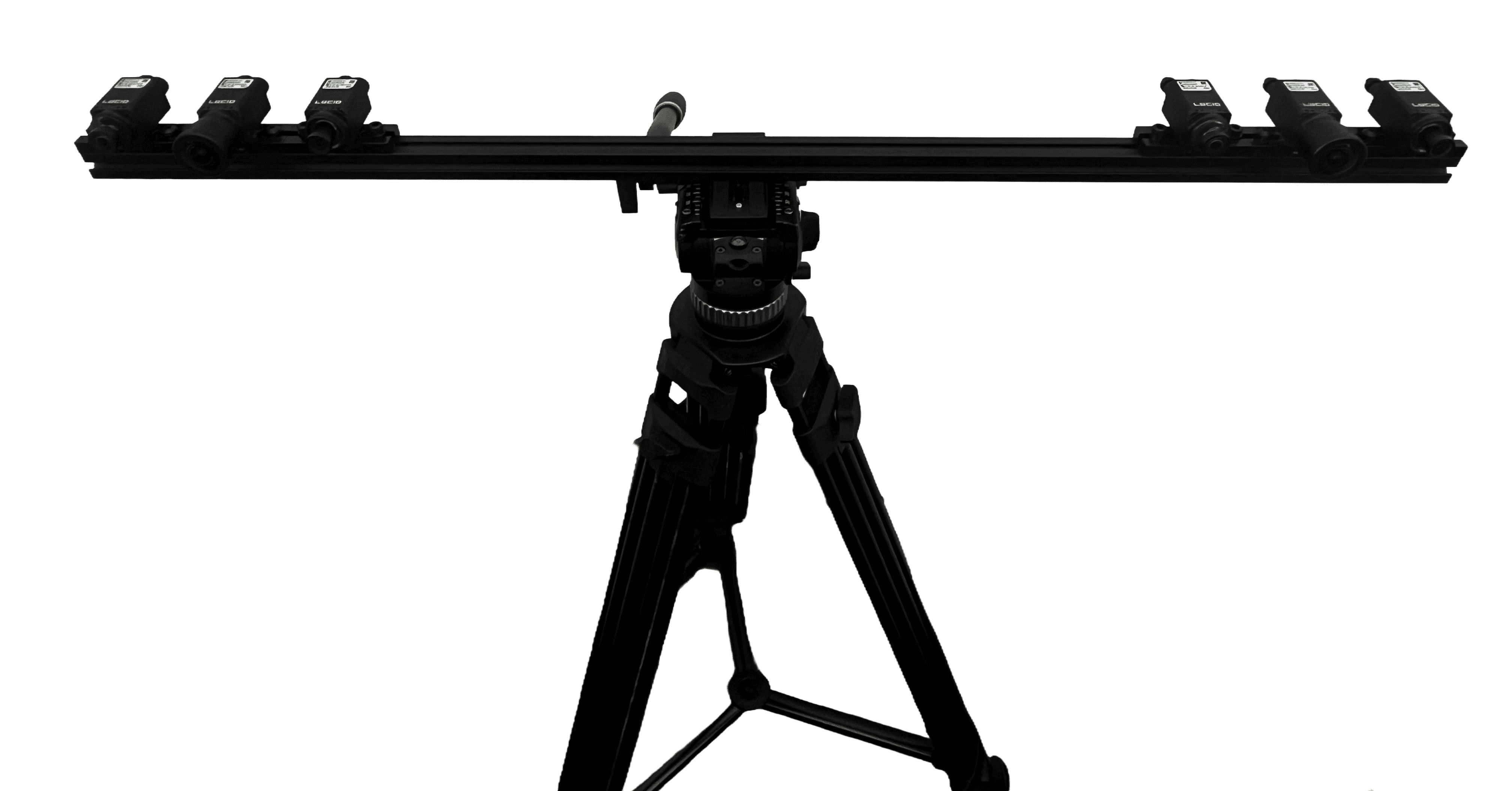

HDK-Nano in action. Customized with 65, 100, and 130 degree lenses.
1000 m
detection range
25 cm at 305 m
small object detection
$9900
starting price
WHY NANO
Same physics.
A fraction of the compute bill.
Long-range stereo has always run on AGX-class compute, until now. HDK Nano ports the full ultra-wide-baseline pipeline to a Jetson Orin Nano footprint, at a fraction of the power draw and cost.
Full Hammerhead stereo pipeline, recompiled for Jetson Orin Nano
Factory-calibrated 5.4MP HDR automotive sensors, built to your baseline
Opens up long-range 3D perception for smaller robots, lower-power drones, and cost-sensitive fleets
NANO VS HDK
The range didn't change. The platform it fits on did.
NODAR HDK Nano
NODAR HDK
compute platform
NVIDIA Jetson Orin Nano
Fanned
NVIDIA Jetson AGX Orin
Fanless
PoE Switch
External
Internal to computer
max detection range
Up to 1,000 m
Up to 1,000 m
small object detection
25 cm object at 305 m
25 cm object at 305 m
For more comparison points, visit our benchmarks page.
Check out the sample output from a HDK Nano system with a 0.5m baseline - with 5.4million 3D points per frame!
BUILT FOR SMALLER, LEANER PLATFORMS
Long-range 3D perception, without the costs of AGX-class compute.
Delivery Robots
Sidewalk and last-mile delivery bots need to spot obstacles well before contact. Nano brings the same detection range as Hammerhead HDK to a platform that can actually carry the compute.
Inspection Drones
Long-range depth perception for drones inspecting towers, pipelines, and infrastructure, where every gram of onboard compute counts against flight time.
Warehouse AMRs
Reliable long-range detection for AMRs navigating open warehouse floors, at a power draw that doesn't eat into runtime or battery life.
Agricultural Robots
Long-range obstacle and row detection for autonomous tractors and sprayers, without the power budget of AGX-class compute. Nano fits the smaller onboard systems ag platforms actually run.
Micromobility
Stereo perception sized for scooters, delivery bots, and other low-power platforms that need to see hundreds of meters ahead, not just avoid what's directly in front of them.
Security Robots
Long-range 3D detection for patrol robots covering open lots, perimeters, and campuses, running on compute that fits a battery-powered platform instead of a vehicle-grade one.
WHAT SHIPS
Every kit built to order.
We work with you to define the best baseline length, camera FOV, and mount geometry for your application, to get HDK Nano in your hands quickly. From there, installation is up to you: cameras attach to standard T-slot aluminum, so the system fits whatever geometry your platform needs.
